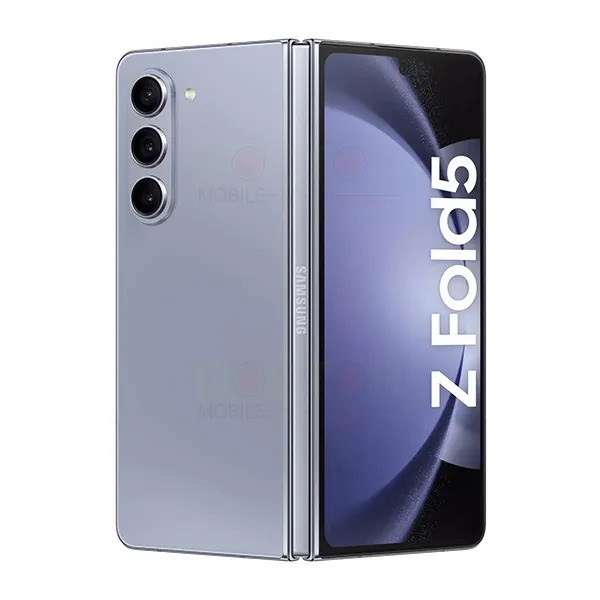

Samsung Galaxy Z Fold5 SM-F946B Specification
Specs
What is this device?
| Model Name | Galaxy Z Fold5 |
| Brand <abbr title="Brand">Manufacturer name</abbr> | Samsung |
| Model Numbers | SM-F946B, SM-F946B/DS |
| Date of released | 11 August, 2025 |
Design
| Size (width x height) | Unfolded: 154.9 x 129.9 mm, Folded: 154.9 x 67.1 mm |
| Depth | Unfolded: 6.1 mm, Folded: 13.4 mm |
| Weight | 253 g (8.92 oz) |
| Resistance | IPX8 water resistant (up to 1.5m for 30 min) |
| Materials | Glass front (Gorilla Glass Victus 2) (folded), plastic front (unfolded), glass back (Gorilla Glass Victus 2), aluminum frame |
| Biometrics | Fingerprint (side-mounted) |
| Colors | Icy Blue, Phantom Black, Cream, Gray, Blue |
Operating System
| OS Version | Android 13 |
| Upgradable | Android 14+ |
| Skin (User Interface) | One UI 5.1.1 |
Processor
| Chipset | Qualcomm SM8550-AC Snapdragon 8 Gen 2 (4 nm) |
| CPU (Processor) |
Octa-core: - 1 x 3.36 GHz Cortex-X3 - 2 x 2.8 GHz Cortex-A715 - 2 x 2.8 GHz Cortex-A710 - 3 x 2.0 GHz Cortex-A510) |
| GPU | Adreno 740 |
Memory
| RAM | 12GB |
| Internal storage | 256GB 512GB ,1TB |
| External Card Slot |
Display
| Technology (Type) | Foldable Dynamic AMOLED 2X, HDR10+ |
| Screen size | 7.6 inches (183.2 cm2) |
| Protection | Corning Gorilla Glass Victus 2 |
| Resolution | 1812 x 2176 pixels |
| Screen to body ratio | ~91.1% |
| Refresh rate | 120Hz |
| Pixel density | ~373 ppi density |
| Display features | Cover display: Dynamic AMOLED 2X, 120Hz, Corning Gorilla Glass Victus 2 6.2 inches, 904 x 2316 pixels, 23.1:9 ratio |
SIM and Network
| SIM | Single SIM or Dual SIM (dual stand-by) |
| SIM type | Nano-SIM |
| Data Speed | HSPA, LTE |
| Network technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| 2G bands |
GSM 850 / 900 / 1800 / 1900 - SIM 1 and SIM 2 (dual-SIM model only) CDMA 800 / 1900 |
| 3G bands |
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 CDMA2000 1xEV-DO |
| 4G bands | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 38, 39, 40, 41, 66 - International |
| 5G bands | 1, 2, 3, 5, 7, 8, 12, 20, 25, 28, 38, 40, 41, 66, 77, 78 SA/NSA/Sub6 - International |
Front Camera (Selfie)
| Front camera | Singal |
| Resolution | 4 MP (under display) |
| Video | 4K@30/60fps, 1080p@30/60fps, gyro-EIS |
| Aperture | f/1.8 |
| Flash | Not supported |
| Pixel size | 2.0µm / 1.22µm |
| Sensor size | 26mm (wide) |
Main Camera (Back)
| Number of cameras | Triple |
| Main camera | 50 MP, f/1.8, (wide) |
| Second camera | 10 MP, f/2.4, (telephoto) |
| Third camera | 12 MP, f/2.4, (ultrawide) |
| Features |
LED flash, Dual Pixel PDAF, OIS |
| Video | 8K@30fps, 4K@60fps, 1080p@60/240fps (gyro-EIS), 720p@960fps (gyro-EIS), HDR10+ |
| Flash | LED flash |
| Autofocus | Supported |
| Touch focus | |
| Face detection | Yes |
| Image stabilization | |
| Pixel size | 1.0µm / 1.12µm |
| Sensor size | 23mm (wide), 12mm (ultrawide) |
| Zoom | 3x optical zoom |
| HDR | Yes |
| BSI sensor | Not Supported |
Battery
| Battery type | Li-Po (lithium-polymer battery) |
| Capacity | 4400 mAh |
| Charging |
25W wired |
| Removal status | non-removable |
Sound
| Headphones jack | No |
| Active noise cancellation | Yes, 2 microphones or more |
| Radio | |
| Audio formats | MP3, WAV, WMA, eAAC+, FLAC |
| Video formats | MP4, H.265, H.264, H.263, XviD, MKV |
Connectivity
| Bluetooth | 5.1, A2DP, LE |
| WiFi | 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct |
| USB | USB Type-C 2.0 |
| Audio output | 3.5mm jack |
| TV output | 3.5mm jack |
| DLNA | Supported |
| GPS | GPS, GLONASS, GALILEO, BDS, QZSS |
| NFC | Supported |
Sensors
| Fingerprint | Fingerprint (side-mounted) |
| Sensors |
accelerometer, gyro, proximity, compass, barometer |
| Vibrating alert |
More
| Features |
Fingerprint reader (side-mounted); stereo speakers; Bixby natural language commands and dictation, Samsung DeX (desktop experience support), Samsung Pay (Visa, MasterCard certified), Ultra Wideband (UWB) support. |
| Call control | Voice dialing, Voice recorder, Voice commands |
| Messaging | SMS (T9), MMS, E-mail, Push mail |
| Web browser | HTML, XHTML, HTML5 |
| In The Box | UBS-C cable, User manual, SIM eject tool |
Samsung Galaxy Z Fold5 SM-F946B Specs Summery.
The Samsung Galaxy Z Fold5 is a revolutionary smartphone that combines cutting-edge technology and exceptional design. With a sleek and durable build featuring Gorilla Glass Victus 2 and an aluminum frame, it’s not only stylish but also IPX8 water-resistant and tough against drops and scratches. The device supports stylus input for enhanced productivity.
Its display is a stunning 7.60-inch Foldable Dynamic AMOLED 2X with a 120Hz refresh rate, HDR10+ support, and a high resolution, delivering an immersive visual experience. When folded, the cover display offers a convenient interface for quick tasks.
Powered by the Qualcomm Snapdragon 8 Gen 2 chipset and equipped with up to 12GB of RAM and 1TB of storage, the Galaxy Z Fold5 delivers exceptional performance. Its camera system includes a 50MP main camera, a 10MP telephoto camera with 3x optical zoom, and a 12MP ultra-wide-angle camera for outstanding photography and 8K video recording.
A long-lasting 4400mAh battery ensures all-day use, with 25W wired charging and 15W wireless charging options. It also supports 4.5W reverse wireless charging. The device offers 5G connectivity, eSIM support, Dual SIM capabilities, Wi-Fi 6e, and Bluetooth 5.3 for seamless connectivity.
Running on Android 13 with One UI 5.1.1, it provides the latest software features and security updates. Additional features include a side-mounted fingerprint reader, stereo speakers, Bixby integration, Samsung DeX for a desktop experience, Samsung Pay certification, and Ultra Wideband (UWB) support.
In summary, the Samsung Galaxy Z Fold5 is a foldable masterpiece that redefines the smartphone experience, offering style, durability, exceptional performance, and innovation. It’s a device that opens up new possibilities for work, play, and connectivity, representing the future of mobile technology.
Find here Galaxy Z Fold5 User Manual.
- Body: 154.9×129.9×6.1mm, 253g; Gorilla Glass front (Victus 2) (folded), plastic front (unfolded), Gorilla glass back (Victus 2), aluminum frame; IPX8 water resistant (up to 1.5m for 30 min), Armor aluminum frame, Stylus support.
- Display: 7.60″ Foldable Dynamic AMOLED 2X, 120Hz, HDR10+, 1812x2176px resolution, 10.81:9 aspect ratio, 373ppi; Cover display:, Dynamic AMOLED 2X, 120Hz, Corning Gorilla Glass Victus 2, 6.2 inches, 904 x 2316 pixels, 23.1:9 ratio.
- Chipset: Qualcomm SM8550-AC Snapdragon 8 Gen 2 (4 nm): Octa-core (1×3.36 GHz Cortex-X3 & 2×2.8 GHz Cortex-A715 & 2×2.8 GHz Cortex-A710 & 3×2.0 GHz Cortex-A510); Adreno 740.
- Memory: 256GB 12GB RAM, 512GB 12GB RAM, 1TB 12GB RAM; UFS 4.0.
- OS: Android 13, One UI 5.1.1.
- Rear camera: Wide (main): 50 MP, f/1.8, 23mm, 1.0µm, Dual Pixel PDAF, OIS; Telephoto: 10 MP, f/2.4, PDAF, OIS, 3x optical zoom; Ultra wide angle: 12 MP, f/2.2, 123˚, 12mm, 1.12µm.
- Front camera: Under Display: 4 MP, f/1.8, 26mm, 2.0µm; Cover camera: 10 MP, f/2.2, 24mm, 1/3″, 1.22µm.
- Video capture: Rear camera: 8K@24fps, 4K@60fps, 1080p@60/240fps (gyro-EIS), 720p@960fps (gyro-EIS), HDR10+; Front camera: 4K@30/60fps, 1080p@30/60fps, gyro-EIS.
- Battery: 4400mAh; 25W wired, 50% in 30 min (advertised), 15W wireless, 4.5W reverse wireless.
- Connectivity: 5G; eSIM; Dual SIM; Wi-Fi 6e; BT 5.3, aptX HD; NFC.
