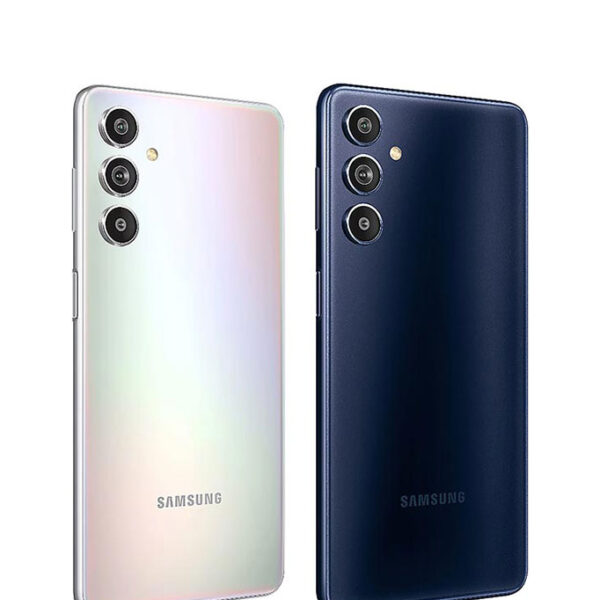

Samsung Galaxy F54 5G (SM-E546B) Specification

Samsung Galaxy F54 5G (SM-E546B) Specification
Brand: Samsung Category: Mobile
  • Display 6.7 inches, 1080 x 2400 pixels
  • Camera Rear Cameras: 108 MP, 8 MP, 2 MP / Selfie Camera: 32 MP
  • CPU Octa-Core: 2.4GHz, 2.0GHz; Exynos 1380 (5 nm)
  • RAM 8GB
  • Storage 256GB
  • Battery 6000 mAh, Non-removable
  • OS Android 13, One UI Core 5.1

Specs

What is this device?

Model Name Galaxy F54 5G
Brand <abbr title="Brand">Manufacturer name</abbr> Samsung
Model Numbers SM-E546B, SM-E546B/DS
Date of released 06 June, 2023

Design

Size (width x height) 164.9 x 77.3 mm (6.49 x 3.04 in)
Depth 8.4 mm (0.33 inches)
Weight 199 g (7.02 oz)
Materials Glass front, plastic back, plastic frame
Biometrics Fingerprint (side-mounted)
Colors Meteor Blue, Stardust Silver

Operating System

OS Version Android 13
Upgradable Android 14
Skin (User Interface) One UI Core 5.1

Processor

Chipset Exynos 1380 (5 nm)
CPU (Processor) Octa-core :
- 2.4 GHz Cortex-A78 x 4
- 2.0 GHz Cortex-A55 x 4
GPU Mali-G68 MP5

Memory

RAM 8GB
Internal storage 256GB
External Card Slot
Memory Card slot type microSDXC (uses shared SIM slot)

Display

Technology (Type) Super AMOLED Plus,
Screen size 6.7 inches (108.4 cm²)
Protection Gorilla Glass Victus 2
Resolution 1080 x 2400 pixels (Full HD+)
Screen to body ratio ~85.0%
Refresh rate 120Hz
Pixel density ~393 ppi density (20:9 ratio)
Display features 16M Colors, HDR

SIM and Network

SIM Hybrid Dual SIM (dual stand-by)
SIM type Nano-SIM
Data Speed HSPA, LTE-A, 5G
Network technology GSM / HSPA / LTE / 5G
2G bands GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2
3G bands HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands 1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 26, 28, 38, 40, 41, 66
5G bands 1, 3, 5, 7, 8, 28, 40, 41, 77, 78 SA/NSA/Sub6
View More View Less

Front Camera (Selfie)

Front camera Singal
Resolution 32 MP
Video 4K@30fps, 1080p@30fps
Aperture f/2.2
Focal length 26mm (wide)
Flash NA
Pixel size 0.8µm
Sensor size 1/2.8"
View More View Less

Main Camera (Back)

Number of cameras Triple (3)
Main camera 108 MP, f/1.8, (wide), PDAF, OIS
Second camera 8 MP, f/2.2, (ultrawide), 1/4", 1.12µm
Third camera 2 MP, f/2.4, (macro)
Fourth camera NA
Features Panorama, HDR;
Main camera resolution: 20000x10000 pixels
Video 4K@30fps, 1080p@30/60fps
Flash LED flash
Autofocus Supported
Touch focus
Face detection Yes
Image stabilization
Pixel size 1.12µm pixel
Sensor size 1/4 inches
Zoom Digital and optical zoom
HDR Yes
BSI sensor Not Supported
View More View Less

Battery

Battery type Li-Po (lithium-polymer battery)
Capacity 6000 mAh
Removal status non-removable

Sound

Headphones jack No 3.5mm jack (USB Type-C support)
Speakers Yes
Radio
Audio formats MP3, WAV, WMA, eAAC+, FLAC
Video formats MP4, H.265, H.264, H.263, XviD, MKV

Connectivity

Bluetooth 5.3, A2DP, LE
WiFi Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct
USB USB Type-C 2.0, OTG
Audio output USB Type-C / Bluetooth
GPS GPS, GLONASS, GALILEO, BDS, QZSS, NavIC
NFC Supported
View More View Less

Sensors

Fingerprint Yes (under display, optical)
Sensors Fingerprint (side-mounted),
Accelerometer,
Gyro,
Proximity,
Compass
Vibrating alert

More

Features - Samsung Knox.
- Samsung Pay.
- Samsung Smart Switch for PC Sync.
Call control Voice dialing, Voice recorder, Voice commands
Messaging SMS (T9), MMS, E-mail, Push mail
Web browser HTML, XHTML, HTML5
In The Box UBS-C cable, User manual, SIM eject tool

Expert Rating

The overall rating is based on review by our experts

8.3
  • Design 8 / 10
  • Performance 8 / 10
  • Features 8 / 10
  • Camera 9 / 10

The Samsung Galaxy F54 5G is a mid-range smartphone that was released in June 2023. Model number SM-E546B Specs added in this page. Specially this model number SM-E546B is South Korea version. This Phone has 6.7 inch Super AMOLED Plus display with 120Hz refresh rate. And powered by the Exynos 1380 processor. This unlocked version of Galaxy F54 has a triple-lens rear camera setup, consisting of 108MP main sensor, 8MP ultrawide sensor. The front-facing camera is 32MP. This F54 runs Android 13 with One UI 5.1 on top, and has a 6000mAh battery with fast charging support. Galaxy F54 is available with few color variations, such as Meteor Blue, Stardust Silver.

This Galaxy F54 specifications summery as below. Some details may be different in your location. We update common specs sheet for a model number SM-E546B. Here are more detailed description about SM-E546B Specification:

Body: The F54 is made of glass and plastic. It has a smooth, curved design and is available in few colors. This device is water-resistant and dust-resistant, and it has a built-in fingerprint sensor.

Display: F54 has a 6.7-inch Super AMOLED Plus display with a 120Hz refresh rate. The display is bright and colorful, and it has good viewing angles.

Chipset: Powered by the Exynos 1380 processor. This is a mid-range processor that is capable of handling most tasks, including gaming and multitasking.

Memory: Comes with 8GB RAM and 256 GB internal storage. It is sufficient for multitasking, and the storage is expandable via microSD card.

OS/Software: Runs Android 13 with One UI 5.1 on top. One UI is a user-friendly interface that makes it easy to use the phone. The F54 also comes with a variety of pre-installed apps, including Samsung’s own apps like Bixby, Samsung Pay, and Samsung Health.

Rear camera: Quad rear camera system. The main sensor is 108MP, and it takes sharp and detailed photos. The ultrawide sensor is 8MP, and it takes wide-angle photos. The macro sensor is 2MP.

Front camera: 32MP front-facing camera. It takes clear and sharp selfies.

Video capture: It can record video in up to UHD 4K resolution at 30fps. It also supports slow-motion video recording at up to 30fps.

Battery: 6000mAh battery. This is a large battery that can easily last a full day on a single charge. The F54 also supports fast charging, which can charge the battery from empty to full in about an hour.

Overall, the Samsung Galaxy F54 is a good mid-range smartphone. It has a large display, a powerful processor, and a good camera setup. Its long-lasting battery and supports fast charging. Galaxy F54 model SM-E546B global version is a good choice for people who are looking a reliable and affordable smartphone.


Disclaimer: We can not guarantee that the information on this page is 100% correct.
