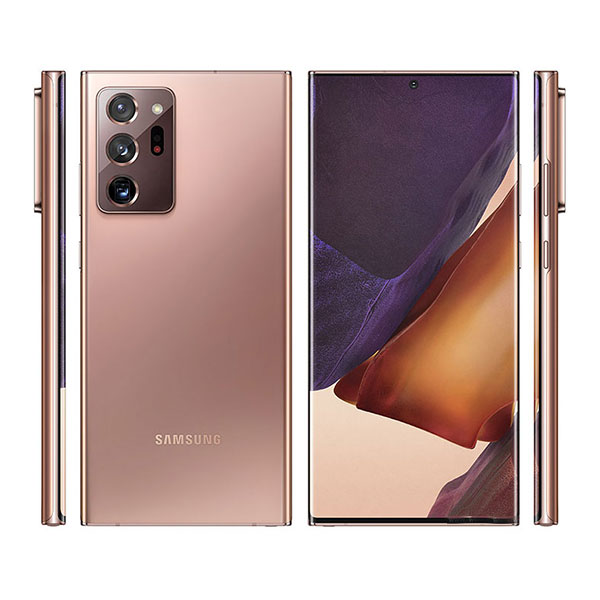

Galaxy Note20 Ultra (5G) SM-N986W Specification

Galaxy Note20 Ultra (5G) SM-N986W Specification
Brand: Samsung Category: Mobile
  • Display 6.9 inches, 1440 x 3088 pixels
  • Camera Rear Cameras: 108 MP, Selfie Camera: 10 MP
  • CPU Qualcomm SM8250 Snapdragon 865 5G+ (7 nm+)
  • RAM 12GB (LPDDR5)
  • Storage 128GB, 256GB, 512GB
  • Battery 4500 mAh, Non-removable
  • OS Android 10, One UI 5

Specs

What is this device?

Model Name Galaxy Note20 Ultra 5G
Brand <abbr title="Brand">Manufacturer name</abbr> Samsung
Model Numbers SM-N986W
Date of released 21 August, 2025

Design

Size (width x height) 164.8 x 77.2 mm (6.49 x 3.04 in)
Depth 8.1 mm (0.32 in )
Weight 208 g (7.34 oz)
Resistance IP68 dust/water resistant (up to 1.5m for 30 min)
Materials Glass front (Gorilla Glass Victus), glass back (Gorilla Glass Victus), stainless steel frame
Biometrics Fingerprint (under display, ultrasonic)
Colors Mystic Bronze, Mystic Black, Mystic White

Operating System

OS Version Android 10
Upgradable Android 13
Skin (User Interface) One UI 5

Processor

Chipset Qualcomm SM8250 Snapdragon 865 5G+ (7 nm+)
CPU (Processor) Octa-core, 3 processors:
- 1 x 3.09GHz Kryo 585 (Single-core)
- 3 x 2.42GHz Kryo 585 (Triple-core)
- 4 x 1.8GHz Kryo 585 (Quad-core)
GPU Qualcomm Adreno 650 (250-646MHz)

Memory

RAM 12GB
Internal storage 128GB, 256GB, 512GB
External Card Slot
Memory Card slot type MicroSDXC (uses shared SIM slot)

Display

Technology (Type) Dynamic AMOLED 2X
Screen size 6.9" inches (116.7 cm2)
Protection Gorilla Glass Victus
Resolution 1440 x 3088 pixels
Screen to body ratio 91.7%
Refresh rate 120Hz
Pixel density 496 ppi density (19.3:9 ratio)
Display features 16M Colors, HDR10+, 1750nits[peak], Always-On Display, Capacitive Multitouch 10-points

SIM and Network

SIM Nano-SIM and eSIM or Hybrid Dual SIM (Nano-SIM, dual stand-by)
SIM type Nano-SIM / eSIM
Data Speed HSPA 42.2/5.76 Mbps, LTE-A (7CA) Cat20 2000/200 Mbps, 5G
Network technology GSM / CDMA / HSPA / EVDO / LTE / 5G
2G bands GSM 850 / 900 / 1800 / 1900 - SIM 1 and SIM 2 (dual-SIM model only)
CDMA 800 / 1900
3G bands HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
CDMA2000 1xEV-DO
4G bands 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 25, 29, 30, 38, 39, 40, 41, 46, 66, 71
5G bands 41, 66, 71 Sub6
View More View Less

Front Camera (Selfie)

Front camera Singal
Resolution 10 MP, , 26mm (wide) Dual Pixel PDAF
Video 4K@30/60fps, 1080p@30fps
Aperture f/2.2
Focal length 26mm (wide)
Flash Not supported
Pixel size 1.22µm
View More View Less

Main Camera (Back)

Number of cameras Triple
Main camera 108 MP, f/1.8, 26mm (wide), 1/1.33", 0.8µm, PDAF, Laser AF, OIS
Second camera 12 MP, f/3.0, 120mm (periscope telephoto), 1.0µm, PDAF, OIS, 5x optical zoom, 50x hybrid zoom
Third camera 12 MP, f/2.2, 120˚, 13mm (ultrawide), 1/2.55", 1.4µm
Features LED flash, auto-HDR, panorama
Video 8K@24fps, 4K@30/60fps, 1080p@30/60/240fps, 720p@960fps, HDR10+, stereo sound rec., gyro-EIS & OIS
Flash LED flash
Autofocus Supported
Touch focus
Face detection Yes
Image stabilization
Pixel size 0.6µm pixel
Sensor size 1/1.3" inches
Zoom Digital and optical zoom
HDR Yes
BSI sensor Supported
View More View Less

Battery

Battery type Li-Ion battery
Capacity 4500 mAh
Charging 25W wired, PD3.0
15W wireless (Qi/PMA)
4.5W reverse wireless
Removal status non-removable

Sound

Headphones jack No 3.5mm jack (USB Type-C support) 32-bit/384kHz audio Tuned by AKG
Speakers Stereo sound
Active noise cancellation Yes, 2 microphones or more
Radio
Audio formats MP3, WAV, WMA, eAAC+, FLAC
Video formats MP4, H.265, H.264, H.263, XviD, MKV

Connectivity

Bluetooth 5.0, A2DP, LE, aptX
WiFi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct
USB USB Type-C 3.2, OTG
Audio output Type-C reversible connector
TV output USB Type-C (reversible)
DLNA Supported
GPS A-GPS, GeoTagging, GLONASS, GALILEO, BeiDou
NFC Supported
View More View Less

Sensors

Fingerprint Yes (under display, optical)
Sensors Accelerometer, gyro, proximity, compass, barometer
Vibrating alert

More

Features - Samsung Knox.
- Samsung Pay.
- Samsung Smart Switch for PC Sync.
- Samsung Wireless DeX (desktop experience support)
ANT+
Call control Voice dialing, Voice recorder, Voice commands
Messaging SMS (T9), MMS, E-mail, Push mail
Web browser HTML, XHTML, HTML5
In The Box UBS-C cable, User manual, SIM eject tool

Expert Rating

The overall rating is based on review by our experts

9
  • Design 9 / 10
  • Performance 9 / 10
  • Features 9 / 10
  • Camera 9 / 10

Galaxy Note20 Ultra (5G) SM-N986W Specification Review

Released on August 21, 2020, the Samsung Galaxy Note20 Ultra 5G SM-N986W is the Canadian variant of Samsung’s flagship phablet, combining cutting-edge technology with a generous display. This review explores the key features of this device tailored for the Canadian market.

Display and Design

The Galaxy Note20 Ultra 5G SM-N986W features an expansive 6.9-inch screen with a refresh rate of up to 120 Hz. This dynamic combination ensures a visually stunning experience, making the device ideal for multimedia consumption, gaming, and productivity tasks. The large screen size, coupled with slim bezels and a sleek design, enhances the overall aesthetic appeal.

Performance

Powered by a robust processor, the Note20 Ultra 5G SM-N986W delivers top-tier performance. The Canadian variant is likely to be equipped with the Exynos 990 chipset, providing seamless multitasking and efficient operation. The device’s performance is further enhanced by 5G connectivity, enabling faster data speeds and improved network responsiveness.

As part of the Note series legacy, the S Pen stylus is seamlessly integrated into the Galaxy Note20 Ultra 5G SM-N986W, offering users precise input and a variety of productivity features. The S Pen’s responsive nature enhances the overall user experience, making it a standout feature for users who value productivity on the go.

Camera Capabilities

The device is expected to feature an advanced camera system, with specifications such as a 108 MP main sensor, allowing users to capture high-quality photos and videos. The multiple lenses and innovative camera features contribute to the device’s photography prowess.

Connectivity and 5G

With 5G support, the Note20 Ultra 5G SM-N986W ensures users have access to the latest in mobile network technology. This connectivity feature is particularly valuable for those seeking faster download and upload speeds, low latency, and an overall enhanced online experience.

Canadian Availability

Designed specifically for the Canadian market, the Galaxy Note20 Ultra 5G SM-N986W is optimized for use with Canadian carriers, offering seamless compatibility and support for the country’s network infrastructure.

The Samsung Galaxy Note20 Ultra 5G SM-N986W caters to the Canadian audience with its large, high-refresh-rate display, advanced camera capabilities, and seamless S Pen integration. Released in August 2020, this phablet represents Samsung’s commitment to delivering a premium smartphone experience to the Canadian market, combining cutting-edge features with the signature functionality of the Note series. Whether for productivity or entertainment, the Galaxy Note20 Ultra 5G SM-N986W stands as a testament to Samsung’s dedication to providing top-tier devices tailored to regional preferences.
