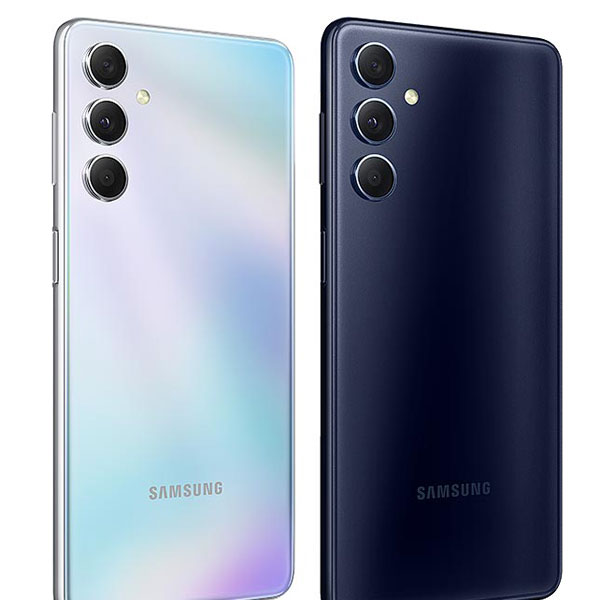

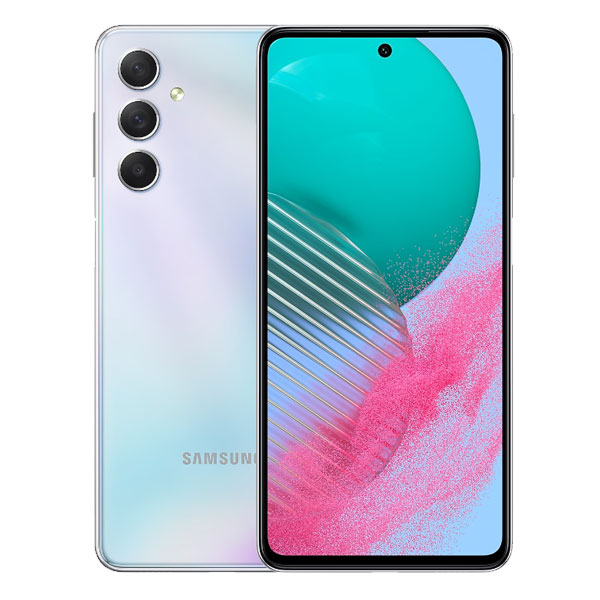

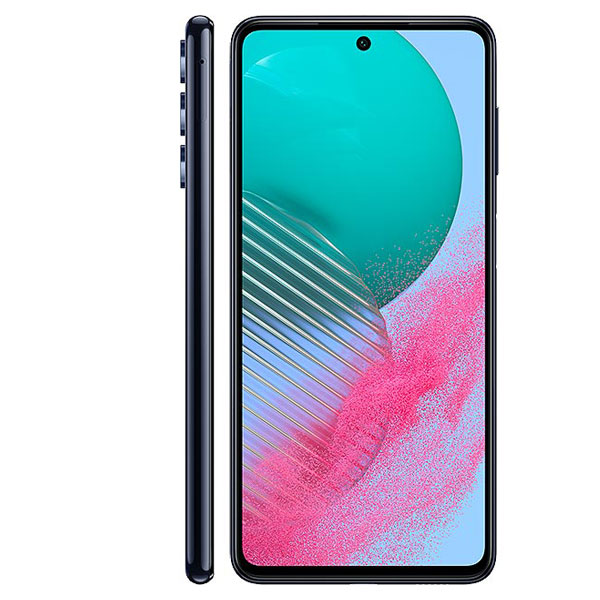

Samsung Galaxy M54 SM-M546B Specification
Specs
What is this device?
| Model Name | Galaxy M54 |
| Brand <abbr title="Brand">Manufacturer name</abbr> | Samsung |
| Model Numbers | SM-M546B, SM-M546B/DS |
| Date of released | 11 April, 2023 |
Design
| Size (width x height) | 164.9 x 77.3 mm |
| Depth | 8.4 mm |
| Weight | 199 g |
| Resistance | Gorilla Glass 5 |
| Materials | Glass front (Gorilla Glass), plastic back, plastic frame |
| Biometrics | Fingerprint (side-mounted) |
| Colors | Dark Blue, Silver |
Operating System
| OS Version | Android 13 |
| Upgradable | Android 14 |
| Skin (User Interface) | One UI Core 5.1 |
Processor
| Chipset | Exynos 1380 (5 nm) |
| CPU (Processor) |
Octa-core : 2.4 GHz Cortex-A78 x 4, 2.0 GHz Cortex-A55 x 4 |
| GPU | Mali-G68 MP5 |
Memory
| RAM | 8GB |
| Internal storage | 128GB / 256GB |
| External Card Slot | |
| Memory Card slot type | microSDXC (uses shared SIM slot) |
Display
| Technology (Type) | Super AMOLED Plus |
| Screen size | 6.7 inches (108.4 cm²) |
| Protection | Corning Gorilla Glass 5 |
| Resolution | 1080 x 2400 pixels (Full HD+) |
| Screen to body ratio | 85.0% |
| Refresh rate | 120Hz |
| Pixel density | 393 ppi density (20:9 ratio) |
| Display features | 16M Colors |
SIM and Network
| SIM |
Hybrid Dual SIM (dual stand-by) |
| SIM type | Nano-SIM (4FF) |
| Data Speed | HSPA, LTE-A, 5G |
| Network technology | GSM / HSPA / LTE / 5G |
| 2G bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| 3G bands |
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 4G bands |
1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 26, 28, 38, 40, 41, 66 |
| 5G bands | 1, 3, 5, 7, 8, 28, 40, 41, 66, 77, 78 SA/NSA/Sub6 |
Front Camera (Selfie)
| Front camera | Singal |
| Resolution | 32 MP, |
| Video | 4K@30fps, 1080p@30fps |
| Aperture | f/2.2 |
| Focal length | 26mm (wide) |
| Flash | No |
| Pixel size | 0.8µm |
| Sensor size | 1/2.8" |
Main Camera (Back)
| Number of cameras | Triple |
| Main camera | 108 MP, f/1.8, (wide), PDAF, OIS |
| Second camera | 8 MP, f/2.2, (ultrawide), 1/4", 1.12µm |
| Third camera | 2 MP, f/2.4, (macro) |
| Fourth camera | NA |
| Features | panorama, HDR |
| Video | 4K@30fps, 1080p@30/60fps |
| Flash | LED flash |
| Autofocus | Yes (Only Main Camera) |
| Touch focus | |
| Image stabilization | |
| Zoom | Digital Zoom up to 10x |
| BSI sensor | Not Supported |
Battery
| Battery type | Li-Po (lithium-polymer battery) |
| Capacity | 6000 mAh (Talk Time Up to 55 Hours) |
| Charging | 25W wired |
| Removal status | non-removable |
Sound
| Headphones jack | USB Type-C |
| Speakers | Loudspeaker |
| Active noise cancellation | - |
| Radio | |
| TV | No |
| Audio formats | MP3, M4A, 3GA, AAC, OGG, OGA, WAV, AMR, AWB, FLAC, MID, MIDI, XMF, MXMF, IMY, RTTTL, RTX, OTA |
| Video formats | MP4, M4V, 3GP, 3G2, AVI, FLV, MKV, WEBM |
Connectivity
| Bluetooth | 5.3, A2DP, LE |
| WiFi | 802.11 a/b/g/n/ac/ax 2.4G+5GHz, HE80, MIMO, 1024-QAM |
| USB | USB Type-C 2.0, OTG |
| Audio output | USB Type-C / Bluetooth |
| TV output | - |
| DLNA | - |
| GPS | GPS, GLONASS, GALILEO, BDS, QZSS, NavIC |
| NFC | Yes |
Sensors
| Fingerprint | Yes (side-mounted) |
| Sensors | Accelerometer, Gyro, Proximity, Compass |
| Vibrating alert |
More
| Features |
- Samsung Knox. - 25W Super Fast Charging Support. - Samsung Pay. - Samsung Smart Switch for PC Sync. |
| Call control | Voice dialing, Voice recorder, Voice commands |
| Messaging | SMS (T9), MMS, E-mail, Push mail |
| Web browser | HTML, XHTML, HTML5 |
| In The Box | UBS-C cable, User manual, SIM eject tool |
Samsung Galaxy M54 5G was released in April 11, 2023. This Galaxy M54 specifications summery as below. Some details may be different in your location. We update common specs sheet for a model number SM-M546B.
- Body: 164.9 x 77.3 x 8.4 mm, 199 g; Glass front (Gorilla Glass 5), plastic back, plastic frame;
- Display: 6.7″ Super AMOLED Plus, 120Hz, 1080x2400px resolution, 20:9 aspect ratio, 393ppi.
- Chipset: Exynos 1380 (5 nm): Octa-core (4×2.4 GHz Cortex-A78 & 4×2.0 GHz Cortex-A55); Mali-G68 MP5.
- Memory: internal 128GB or 256GB with 8GB.
- OS/Software: Android 13, One UI 5.1.
- Rear camera: Wide (main): 108 MP, f/1.8; ultrawide: 8 MP, f/2.2; macro: 2 MP, f/2.4.
- Front camera: 32 MP, f/2.2, 26mm (wide).
- Video capture: Rear and Front camera: 4K@30fps, 1080p@30/60fps.
- Battery: 6000mAh; 25W wired, non-removable.
