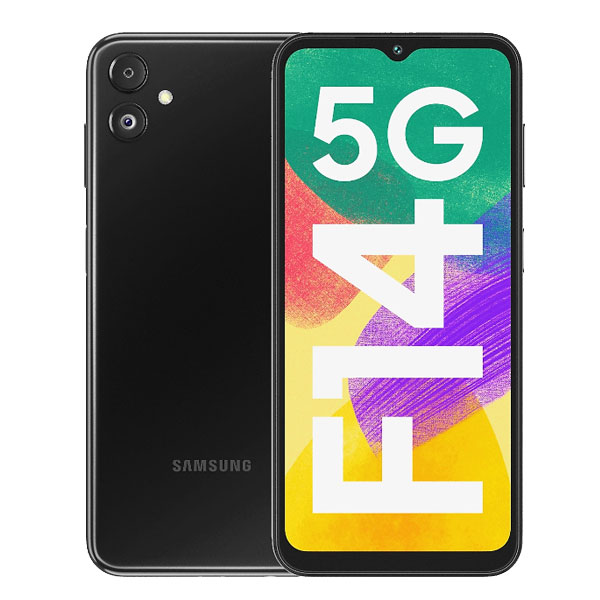

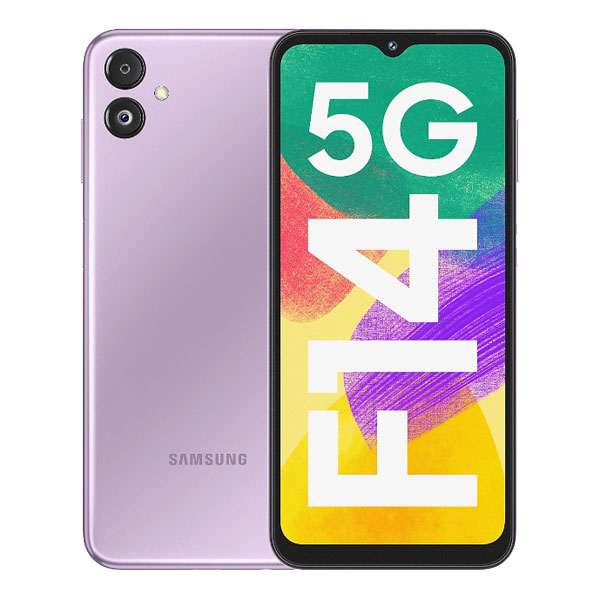

Samsung Galaxy F14 5G Full Specification (SM-E146B)
Specs
What is this device?
| Model Name | Galaxy F14 |
| Brand <abbr title="Brand">Manufacturer name</abbr> | Samsung |
| Model Numbers | SM-E146B, SM-E146B/DS, SM-E146BZGH |
| Date of released | 30 March, 2023 |
Design
| Size (width x height) | 166.8 x 77.2 mm |
| Depth | 9.4 mm |
| Weight | 206 g |
| Resistance | Gorilla Glass 5 |
| Materials | Glass front, plastic back, plastic frame |
| Biometrics | Fingerprint (side-mounted) |
| Colors | Black, Green, Purple |
Operating System
| OS Version | Android 13 |
| Upgradable | Android 14 |
| Skin (User Interface) | One UI Core 5.1 |
Processor
| Chipset | Exynos 1330 (5nm) |
| CPU (Processor) |
Octa-core : 2.4 GHz Cortex-A78 x 2, 2.0 GHz Cortex-A55 x 6 |
| GPU | Mali-G68 MP2 |
Memory
| RAM | 4GB, 6GB |
| Internal storage | 128GB (Available Storage 105.2GB) |
| External Card Slot | |
| Memory Card slot type | microSDXC (max 1TB) |
Display
| Technology (Type) | PLS LCD |
| Screen size | 6.6 inches (104.9 cm²) |
| Protection | Corning Gorilla Glass 5 |
| Resolution | 1080 x 2408 pixels (Full HD+) |
| Screen to body ratio | 81.5% |
| Refresh rate | 90Hz |
| Pixel density | 400 ppi density (20:9 ratio) |
| Display features | High Brightness Mode - 1000 nits (peak), 16M Colors |
SIM and Network
| SIM | Dual SIM (dual stand-by) |
| SIM type | Nano-SIM (4FF) |
| Data Speed | HSPA, LTE-А, 5G |
| Network technology | GSM / HSPA / LTE / 5G |
| 2G bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| 3G bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 4G bands |
1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 26, 28, 38, 40, 41, 66 |
| 5G bands | 1, 3, 5, 7, 8, 20, 28, 38, 40, 41, , 66, 77, 78 SA/NSA/Sub6 |
Front Camera (Selfie)
| Front camera | Yes |
| Resolution | 13 MP (wide) |
| Video | 1080p@30fps |
| Aperture | f/2.0 |
| Focal length | - |
| Flash | No |
Main Camera (Back)
| Number of cameras | Dual (wide, macro) |
| Main camera | 50 MP, f/1.8, (wide), PDAF |
| Second camera | 2 MP, f/2.4, (macro) |
| Third camera | NA |
| Fourth camera | NA |
| Features | panorama, HDR |
| Video | 1080p@30fps |
| Flash | LED flash |
| Autofocus | PDAF: phase detection autofocus |
| Touch focus | |
| Face detection | - |
| Image stabilization | |
| Pixel size | - |
| Sensor size | - |
| Zoom | Digital Zoom up to 10x |
| HDR | Yes |
| BSI sensor | Not Supported |
Battery
| Battery type | Li-Po (lithium-polymer battery) |
| Capacity | 6000 mAh (Talk Time Up to 58 Hours) |
| Charging | 25W wired |
| Removal status | non-removable |
Sound
| Headphones jack | 3.5mm jack |
| Speakers | Loudspeaker |
| Active noise cancellation | - |
| Radio | |
| TV | No |
| Audio formats | MP3, M4A, 3GA, AAC, OGG, OGA, WAV, AMR, AWB, FLAC, MID, MIDI, XMF, MXMF, IMY, RTTTL, RTX, OTA |
| Video formats | MP4, M4V, 3GP, 3G2, AVI, FLV, MKV, WEBM |
Connectivity
| Bluetooth | 5.2, A2DP, LE |
| WiFi | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct |
| USB | USB Type-C 2.0 |
| Audio output | 3.5mm jack / Bluetooth |
| TV output | - |
| DLNA | - |
| GPS | GPS, GLONASS, GALILEO, BDS, QZSS, NavIC |
| NFC | No |
Sensors
| Fingerprint | Yes (side-mounted) |
| Sensors | Accelerometer, Gyro, Proximity, Compass |
| Vibrating alert |
More
| Features |
- Samsung Knox. - 25W Super Fast Charging Support. - Samsung Pay. - Samsung Smart Switch for PC Sync. |
| Call control | Voice dialing, Voice recorder, Voice commands |
| Messaging | SMS (T9), MMS, E-mail, Push mail |
| Web browser | HTML, XHTML, HTML5 |
| In The Box | UBS-C cable, User manual, SIM eject tool |
Samsung Galaxy F14 5G was released in March 30, 2023. This Galaxy F14 5G specifications summery as below. Some details may be different in your location. We update common specs sheet for a model number SM-E146B.
- Body: 166.8 x 77.2 x 9.4 mm, 206g; Glass front (Gorilla Glass 5), plastic back, plastic frame;
- Display: 6.6″ PLS LCD, 90Hz, 1000 nits (peak), 1080x2408px resolution, 20:9 aspect ratio, 400ppi.
- Chipset: Exynos 1330 (5nm): Octa-core (2×2.4 GHz Cortex-A78 & 6×2.0 GHz Cortex-A55); Mali-G68 MP2.
- Memory: internal 128GB with 4GB or 6GB RAM.
- OS/Software: Android 13, One UI 5.1.
- Rear camera: Wide (main): 50 MP, f/1.8; macro: 2 MP, f/2.4.
- Front camera: 13 MP, f/2.0, (wide).
- Video capture: Rear and Front camera: 1080p@30fps.
- Battery: 6000mAh; 25W wired, non-removable.
