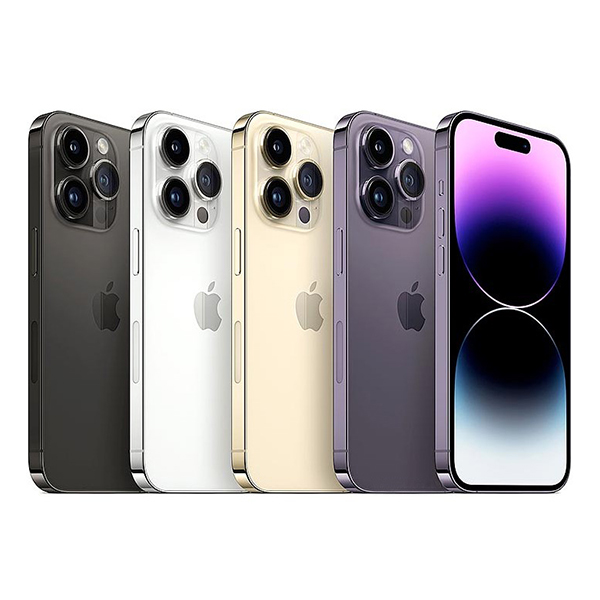

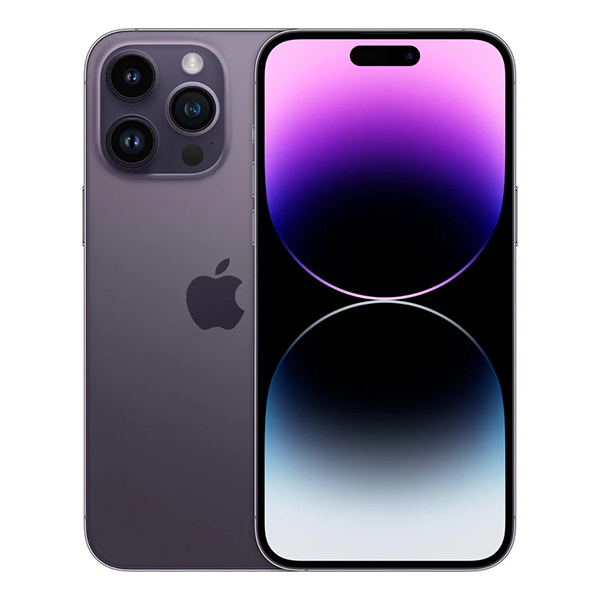

Apple iPhone 14 Pro Max Specs (Full Specifications)
Specs
What is this device?
| Model Name | iPhone 14 Pro Max |
| Brand <abbr title="Brand">Manufacturer name</abbr> | Apple |
| Date of released | 16 September, 2022 |
Design
| Size (width x height) | 77.6 x 160.7 mm (3.06 x 6.33 in) |
| Depth | 7.85 mm (0.31 in) |
| Weight | 240 gm |
| Resistance |
IP68 certified: water-resistant up to 1.5 meters for 30min and dust-resistant |
| Materials | Stainless steel body, glass front/back |
| Biometrics | Face ID |
| Colors | Space Black, Silver, Gold, Deep Purple |
Display
| Technology (Type) | Super Retina XDR OLED |
| Screen size | 6.7" inches |
| Protection | Scratch-resistant ceramic glass, oleophobic coating |
| Resolution | 1290x2796 pixels |
| Screen to body ratio | ~88.3% |
| Refresh rate | 120Hz |
| Pixel density | 19.5:9 |
| Display features | 1000nits[typ], 2000nits[peak] Dolby Vision/HDR10 Wide color gamut True-tone Oleophobic coating screen Always-On Display |
Processor
| Chipset | 64bit - Apple A16 Bionic (4nm) |
| CPU (Processor) |
Hexa-Core, 2 processors: 3.46GHz Dual-Core Avalanche 1.82GHz Quad-Core Blizzard |
| GPU | Apple GPU (5-Core) |
Front Camera (Selfie)
| Front camera | 12 MP (dual front camera) 0.3MP SL 3D |
| Resolution | 4000x3000 pixels |
| Video | 4K UHD (3840x2160) |
| Aperture | f/1.9 (aperture) |
| Focal length | 23mm lens |
| Flash | Not supported |
| Pixel size | feature not registered |
| Sensor size | 1/3.6" inches |
Main Camera (Back)
| Number of cameras | quad camera |
| Main camera | 48 MP, f/1.8, 26mm |
| Second camera | 12MP telephotof/2.877mmPDAFOIS3x-optical-zoom |
| Third camera | 12MP ultrawidef/2.213mm120°1.4µmdual-pixelPDAF |
| Fourth camera | 0.3MP TOF 3DLiDAR-scanner |
| Features |
1080p@240fps ProRes RAW Cinematic mode Face detection Smile detection |
| Video | 4K UHD (3840x2160) 60 fps, |
| Flash | Dual-LED dual-tone flash |
| Autofocus | PDAF: phase detection autofocus |
| Touch focus | |
| Face detection | Yes |
| Image stabilization | |
| Pixel size | 1.22µm pixel |
| Sensor size | feature not registered |
| Zoom | Digital and optical zoom |
| HDR | Supported |
| BSI sensor | Supported |
Memory
| RAM | 6GB |
| Internal storage | 128GB, 256GB, 512GB |
| External Card Slot |
Operating System
| OS Version | iOS 16 |
| Upgradable | feature not registered |
| Skin (User Interface) | feature not registered |
Sensors
| Fingerprint | Not supported |
| Sensors |
ccelerometer Ambient Light sensor Barometer Compass Face unlock Gyroscope Proximity sensor |
| Vibrating alert |
SIM and Network
| SIM | Dual-SIM Standby |
| SIM type | e-SIM (Eletronic) |
| Data Speed | HSPA 42.2/5.76 Mbps, LTE-A, 5G, EV-DO Rev.A 3.1 Mbps |
| Network technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| 2G bands |
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM) CDMA 800 / 1900 |
| 3G bands |
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 CDMA2000 1xEV-DO |
| 4G bands |
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2894, A2896 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 53, 66, 71 - A2651, A2893 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2895 |
| 5G bands |
1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2894, A2896 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79, 258, 260, 261 SA/NSA/Sub6/mmWave - A2651 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79 SA/NSA/Sub6 - A2893 1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2895 |
Sound
| Headphones jack | No |
| Speakers | Stereo sound, Dolby Atmos |
| Active noise cancellation | 2 microphones or more |
| Radio | |
| TV | Not supported |
| Audio formats | MP3, WAV, WMA, eAAC+, FLAC |
| Video formats | MP4, H.265, H.264, H.263, XviD, MKV |
Battery
| Battery type | Li-Ion: Lithium-Ion |
| Capacity | 4323 mAh |
| Charging |
27W Fast battery charging 15W Qi wireless charging USB Power Delivery 2.0 |
| Removal status | Non removable |
Connectivity
| Bluetooth | 5.3 + A2DP/LE |
| WiFi | 802.11 a/b/g/n/ac/ax wifi6 (2.4Ghz, 5Ghz) + MIMO WiFi hotspot |
| USB | USB 2.0 proprietary connector |
| Audio output | proprietary audio output |
| TV output | Proprietary TV-out |
| DLNA | Not supported |
| GPS | A-GPS, GeoTagging, GLONASS, GALILEO, BeiDou, QZSS |
| NFC | Supported |
More
| Features |
Apple Pay MagSafe |
| Call control | Voice dialing, Voice recorder, Voice commands |
| Messaging | SMS (T9), MMS, E-mail, Push mail |
| Web browser | HTML, XHTML, HTML5 |
| In The Box | User manual, lightning cable, SIM eject tool |
